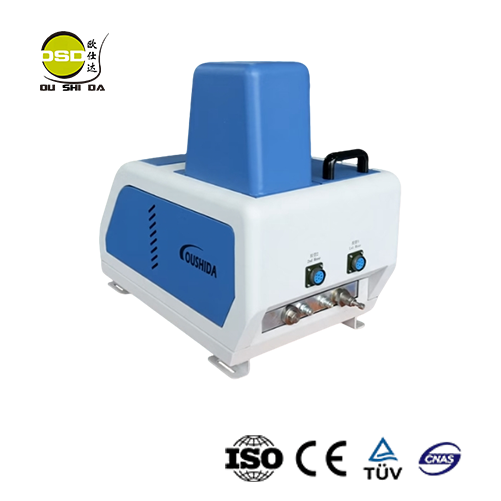

OSD-FM50 Foam Hot Melt Adhesive System - Image 1

OSD-FM50 Foam Hot Melt Adhesive System

  • Capacity: 50L adhesive tank
  • Foaming Technology: Nitrogen‑assisted foaming
  • Rated Power: Industrial custom power
  • Foaming Ratio: up to 60%
  • Applicable Industries: air filter, HVAC, refrigerator, furniture, automotive, electronics
  • The OSD‑FM50 Foam Hot Melt Adhesive System features nitrogen‑assisted foaming for precision bonding, sealing and filling. It cuts adhesive consumption by up to 60% and improves overall production efficiency. It is widely used for air filters, HVAC systems, refrigerators, furniture, mattresses, automotive parts and electronic product manufacturing.
Get A Quote
Category:
The OSD‑FM50 FoamMelt System is an advanced foam hot melt adhesive dispensing system built for high‑efficiency bonding, sealing and filling across multiple industries. Adopting nitrogen‑assisted foaming technology, it converts conventional hot melt adhesive into lightweight high‑density foam adhesive, delivering a foaming ratio up to 60% and greatly reducing adhesive consumption and production costs.
Fitted with a 50L adhesive tank and intelligent PLC touch‑screen control system, it supports precise temperature regulation up to 230℃, with stable foaming pressure from 45 to 80 bar. The OSD‑FM50 maintains consistent adhesive output even under demanding manufacturing conditions. It supports 1‑4 heated hoses and works reliably for both fully‑automated and semi‑automated production lines.
Commonly deployed in air purifier filter manufacturing, HVAC filtration assembly, refrigerator insulation processing, furniture and mattress production, automotive interior components and electronic product assembly. It delivers strong bonding force, superior sealing performance, lower glue usage and better finished‑product quality. It is a cost‑effective solution for high‑volume industrial manufacturing.

Application & Compatibility

Which industries are Oushida hot melt adhesive machines suitable for?

Our hot‑melt equipment is widely applied across packaging, automotive manufacturing, furniture assembly, electronic component sealing, medical device production and many other sectors. Compatible with multiple adhesive types, it reliably fulfills diverse bonding application requirements.

How do I choose the right model for my needs?

Model selection depends on key factors including adhesive output (low‑volume dispensing or high‑volume spraying), operating temperature range, and production conditions (continuous or intermittent operation). Feel free to reach out to our technical specialists via email or phone for a tailored solution.

Are the machines compatible with automated production lines?

Yes. Oushida machines come with standard interfaces, enabling seamless integration with robotic arms, conveyor belts and other automated production systems.

Maintenance & After‑sales

What routine maintenance is required?

Daily: Clear residual adhesive inside the glue tank.
Monthly: Carry out inspection on filters and sealing components.
Periodically: Replace wear‑prone spare parts such as gear pumps. We offer complimentary maintenance training upon your request.

Order & Delivery

What is the lead time after placing an order?

Standard models: Shipment within 48 hours for in‑stock units. Customized models: 5‑15 working days, subject to specific contract agreements.

Can I use my own logo or design on the product?

Certainly. We provide full‑range OEM & ODM services. Your custom logo and exclusive design elements can be seamlessly implemented onto our machines.

Do you have your own factory?

Yes, we own our manufacturing facility based in Jiangsu, China. You are warmly welcome to visit our company and production site.
